Angio-Seal™ VIP
Simple.Proven. Fast Sealing1.
Angio-Seal™ VIP is indicated for closing and reducing time to hemostasis at the common femoral arterial puncture site (lumen diameter >4mm) in patients who have undergone diagnostic angiography procedures or interventional procedures using
- an 8 French or smaller procedural sheath for the 8Fr Angio-Seal device
- or a 6French or smaller procedural sheath for the 6Fr Angio-Seal device.
Angio-Seal™ VIP is also indicated to allow patients to ambulate safely as soon as possible after sheath removal and device placement, following a diagnostic angiography and/or interventional procedures.
CONTACT A REPRESENTATIVECharacteristics

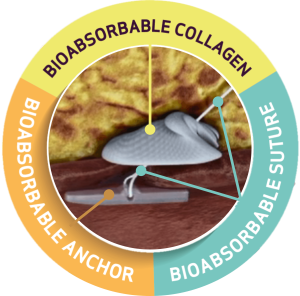

Angio-Seal contains 3 bioabsorbable components for active arteriotomy closure:
- Hemostasis is achieved by sealing the arteriotomy with a bioabsorbable anchor and bioabsorbable collagen plug, held together by a bioabsorbable suture.
- All implantable components resorb within 90 days.2
- Arterial flow is not compromised, no evidence of chronic scar tissue or inflammation.
Proven
After more than 20 years on the market and numerous randomized clinical trials, Angio-Seal™ proved:
- high deployment & hemostasis success rate3
- to provide safe & effective closure of the femoral access site4
- to have lower complication rates than manual compression5 & other VCDs6
Fast Sealing
Versus manual compression, Angio-Seal significantly reduces:
- Time to hemostasis4
- Time to ambulation1
- Time to discharge7
Preparation
Video instructions
General specifications
| Content | Vascular closure device |
|---|---|
| Insertion sheath | |
| Arteriotomy locator | |
| 70 cm guidewire with “J” straightener | |
| Angio-Seal 6 Fr dimension | Sheath diameter: 2.0mm (6 Fr) |
| Guidewire diameter: 0.89mm (0.035 in) | |
| Angio-Seal 8 Fr dimension | Sheath diameter: 2.7mm (8 Fr) |
| Guidewire diameter: 0.96mm (0.038 in) | |
| MRI safe | Yes |
| Storage temperature | Between 15°C to 25°C |
| Shelf life | One year after sterilization |
| Sterilisation process | Gamma radiation (Do not re-sterilize) |
| Units per box | 10 |
Item specifications
| Item reference | French size | Guidewire diameter (in) |
|---|---|---|
| 610132 | 6 | 0.035 |
| 610133 | 8 | 0.038 |
References
1Martin J.L. et al. Catheter Cardiovasc Interv. 2008 Jan 1;71(1):1-5
2Tellez A. et al. EuroIntervention. 2010;5(6):731-6.
3Manolis A.S. et al. Indian Heart Journal. 2016; 68:529-538.
4Wong H.F. et al. AJNR Am J Neuroradiol. 2013 Feb;34(2):397-401.
5Tavris D.R. et al. J Invasive Cardiol. 2012 Jul;24(7):328-34
6Jones L.E. et al. Surg Technol Int. 2015 Nov;27:32-44.
7Veasey R.A. et al. International Journal of Clinical Practice, 62(6), 912–918.
