Eliminate™
A fast and simple solution for effective thrombus aspiration
Eliminate is an innovative aspiration catheter designed to offer a balance between crossing performance, kink resistance and thrombus-aspiration capability.
CONTACT A REPRESENTATIVECharacteristics
Dedicated tip design with radiopaque marker
- Excellent crossability1 while providing atraumatic and effective aspiration
- Ensures reliable fluoroscopic visibility
Braided shaft with hydrophilic coating and pre-loaded stiffening stylet2
- Excellent pushability and kink resistance1
- Easy navigation through tortuous anatomies

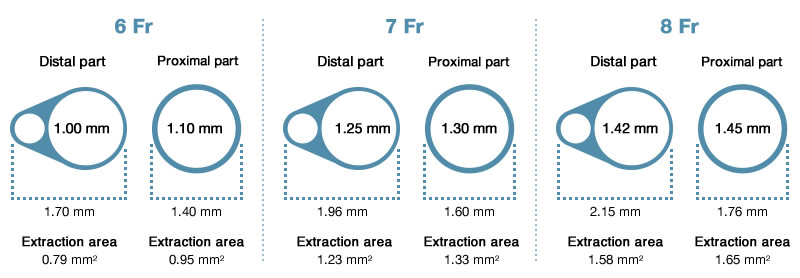

Large aspiration lumen
- Constant, high-performance aspiration throughout the procedure
- Choice of three sizes (6 Fr, 7 Fr and 8 Fr guide catheter compatibility) for different coronary and peripheral applications
Guide Catheter Compatibility
Product Details

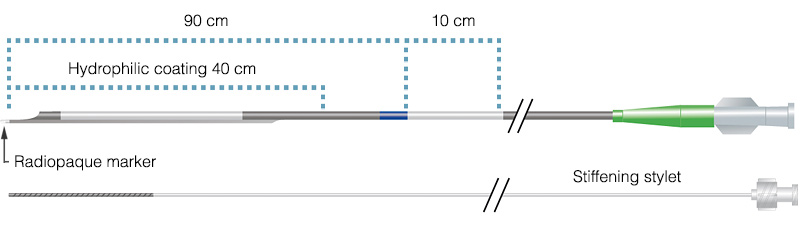

General specifications
| Usable length | 140 cm |
|---|---|
| Distal tip hole length | 4 mm for 6 and 7 Fr, 7 mm for 8 Fr |
| Rapid exchange segment | 23 cm |
| Radiopaque marker | 1 mm located at 4 mm from the tip |
| Positioning marker | 10 cm = single white mark located at 90 cm from distal tip |
| Guidewire compatibility | Maximum diameter 0.014″ (0.36 mm) |
| Coating | Hydrophilic |
Item specifications
| Guide catheter compatibility | Guide sheath compatibility | Item reference | |
|---|---|---|---|
| 6 Fr | I.D. ≥ 0.070″ / 1.78 mm | — | EG1602 |
| 7 Fr | I.D. ≥ 0.080″ / 2.03 mm | — | EG1652 |
| 8 Fr | I.D. ≥ 0.086″ / 2.18 mm | 6 Fr | EG1401 |
Please quote above item reference codes when placing an order.
References
1Onuma et al.; Eur Heart J. 2013 Apr;34(14):1050-60. doi: 10.1093/eurheartj/ehs456. Epub 2013 Feb 8.
2Only the 6 Fr and 7 Fr options are pre-loaded.
