Proven design. Continuously enhanced.
Terumo continues to set the standard in perfusion technology and patient care with system enhancements and improvements that increase safety and reduce risk.

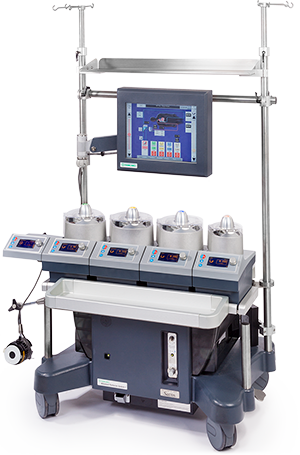

Terumo® Advanced Perfusion System 1
Proven design, continuously enhanced to increase safety and reduce risk.
CONTACT a REPRESENTATIVEContinuing to set the standard in perfusion technology and patient care.
Perfusionists and surgical teams can rely on the Terumo Advanced Perfusion System 1 to help deliver the highest quality care and achieve the best possible patient outcomes.
The technology and design of the Terumo System 1 have continuously evolved, resulting in an exceptional heart-lung machine.
Videos
Perfusionist speak from the heart about Terumo Advanced Perfusion System 1
| Catalog Number | Description | Unit/Case |
|---|---|---|
| Terumo® System 1 Base | ||
| 801763 | Terumo® System 1, base, 100/120V | 1 |
| 801764 | Terumo® System 1, base, 220/240V | 1 |
| 803739 | Programmed PC card system configuration | 1 |
| 801016 | Hand crank (includes two hand cranks) | 1 |
| 802089 | Hand crank bracket (accommodates two hand cranks) | 1 |

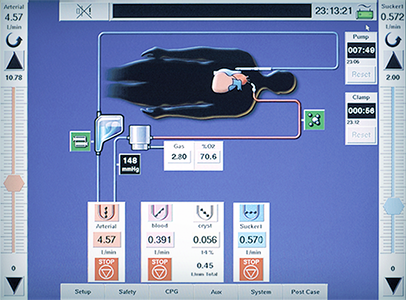

| 816300 | Central control monitor | 1 |
| Base Options | ||
| 801188 | Electronic O2 blender/analyzer; Requires a hose kit and adapter set | 1 |
| 814475 | O2 Air CO2 hose kit, U.S., includes three hoses: green, yellow, grey (adapter set not included) | 1 |
| 814474 | O2 Air CO2 hose kit, ISO, includes three hoses: white, black/white, grey (adapter set not included) | 1 |
| 144215 | D.I.S.S. hose adapter set, U.S. | 1 |
| 815457 | D.I.S.S. hose adapter set, ISO | 1 |
| 144207 | NCG hose adapter set, U.S. | 1 |
| 815459 | NCG hose adapter set, ISO | 1 |
| 144223 | Ohio Diamond hose adapter set, U.S. | 1 |
| 815461 | Ohio Diamond hose adapter set, ISO | 1 |
| Center Poles and Accessories | ||
| 16553301 | Pole, 2' (0.6 m) | 1 |
| 131115 | Pole, 3' (0.9 m) | 1 |
| 16553401 | Pole, 4' (1.2 m) | 1 |
| 145980 | Crossbar fitting (required for each additional pole) | 1 |
| 816489 | Terumo® System 1 shelf | 1 |
| Flexible Halogen Lamp | ||
| 801238 | Flexible halogen lamp, 33" (83.8 cm) | 1 |
| 801558 | Flexible halogen lamp, 15" (38.1 cm) | 1 |
| Roller Pumps | ||
| 801093 | Pole-mount pump rest with bracket | 1 |
| 816477 | Dual pumps pole-mount bracket | 1 |
| 816483 | Descending pole-mount pump bracket | 1 |
| 816570 | Roller pump 4" (10.2 cm) diameter | 1 |
| 816571 | Roller pump 6" (15.2 cm) diameter | 1 |
| Integrated Centrifugal System | ||
| 164267 | Drive motor | 1 |
| 164268 | Manual drive unit | 1 |
| 816572 | Control unit with Coast™ Response; Includes pole mount centrifugal display bracket | 1 |
| 816620 | Flexible mounting arm ; Available for Integrated Centrifugal Drive Motor (164267) and Venous Occluder (803480) | 1 |
| 804372 | Pole-mount centrifugal display bracket | 1 |
| Flow Sensing | ||
| 6382 | Non-invasive flow sensor, 3/8" (9.5 mm) ID x 3/32" (2.4 mm) wall, reusable | 1 |
| 801550 | Mounting bracket (holds two modules) | 1 |
| 802018 | Flow module | 1 |
| Level Detection | ||
| 802111 | Level detect module; Included with Terumo® System 1 | 1 |
| 195215 | Alert level sensor transducer; Included with safety monitor | 1 |
| 195274 | Alarm level sensor transducer; Included with safety monitor | 1 |
| 195240 | Level Sensor II pads, gel included | 60 |
| Air Bubble Detection | ||
| 802110 | Air bubble detect module; Included with Terumo® System 1 | 1 |
| 822763 | Cable assembly | 1 |
| 5773 | Ultrasonic air sensor, 3/8" x 3/32" (9.5 mm x 2.4 mm); One required per air bubble detection system, includes cable assembly and pole clip | 1 |
| 5785 | Ultrasonic air sensor 1/4" x 1/16" (6.4 mm x 1.6 mm); One required per air bubble detection system, includes cable assembly and pole clip | 1 |
| 5791 | Ultrasonic air sensor, 1/4" x 3/32" (6.4 mm x 2.4 mm); One required per air bubble detection system, includes cable assembly and pole clip | 1 |
| 5793 | Ultrasonic air sensor bracket (optional) | 1 |
| 149876 | Pole clip sensor holder | 1 |
| Venous Occluder | ||
| 803480 | Occluder module | 1 |
| 806455 | Occluder head | 1 |
| Pressure Monitoring | ||
| 802112 | Pressure module | 1 |
| Temperature Monitoring | ||
| 802114 | Temperature module, YSI™ series 400 compatible; Two temperatures per module | 1 |

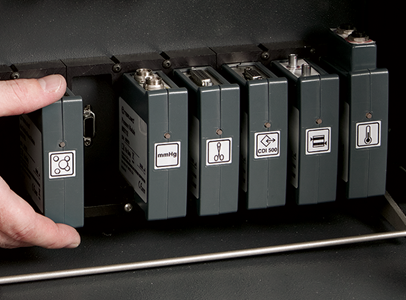

| Data Interface Modules | ||
| 802113 | Serial interface module RS-232 | 1 |
| 803479 | Interface module for CDI® Systems; Includes cable assembly | 1 |
| 804981 | CDI® 100/500 to Terumo® System 1 cable | 1 |
| Spare Parts | ||
| 816370 | Sliding back cover panel kit | 1 |
| Refer to this device’s Instructions For Use (IFU) for the risks associated with its use. |
|---|
